Part Number: LX-4841
Standard Pack: 1
Description:
1/4"-28 Taper Thread (SAE-LT), Straight (LX-3007, Qty: 40)
1/4"-28 Taper Thread (SAE-LT), 45 degree (LX-3013, Qty: 10)
1/4"-28 Taper Thread (SAE-LT), 90 degree (LX-3019, Qty: 10)
1/8" P.T.F. Special Extra Short, Straight (LX-3101, Qty. 20)
1/8" P.T.F. Special Extra Short, 45 degree (LX-3113, Qty. 10)
1/8" P.T.F. Special Extra Short, 90 degree (LX-3119, Qty. 10)
Large, 4-way Grease Fitting Tool (LX-1428, Qty: 1)
Small, 4-way Grease Fitting Tool (LX-1426, Qty: 1)
Specifications:
-
Fully hardened for extra durability and to protect them from wear due to constant use
-
Ball check in the head prevents dirt and grit from getting into the fitting
-
Heavier wall thickness for extra strength
-
Zinc Plated with Yellow Passivated finish, for maximum protection against corrosion
-
Stress Relieved and Tempered Carbon Steel Spring
-
Every fitting is individually inspected and batch tested to 5,000 PSI
-
Designed to meet the demanding requirements of most Automotive, Agricultural, Industrial, Marine, Truck, Federal, and, Construction Equipment needs
-
Thread rolled taper threads are stronger and durable due to hardening and toughening of threads. This is not achievable in a cut thread process, as the threads become brittle on the periphery
-
Dome type riviting completely covers the spring enabling the spring to be firmly secured in its place

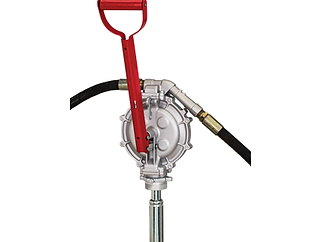

LX-1342 Heavy Duty, Double-Acting Diaphragm Fuel Transfer Pump
Product Details
Part Number: LX-1342
Standard Pack: 1
Description:
Durable Double Acting Diaphragm Pump. Heavy-duty Aluminum Die-Cast Construction with Telescoping Tube Assembly. Excellent for dispensing Anti- Freeze, Diesel, Fuel Oil, Hydraulic Oil, Jet Fuels, Kerosene, Motor Oil, Naphtha, Transformer Oil, Transmission Fluid, Turpentine and similar Petroleum based Products of Light-to-Medium viscosity.
Specifications:
-
Fits 15-55 Gallon (57 L - 210 L) Drums or Tanks with 2” Bung Opening
-
Dispenses 1 Gallon (3.8 L) in 5 Strokes
-
Extra Heavy-Duty Steel Handle with Security Locking Latch
-
Stainless Steel Piston and Fuel Resistant Hi-Nitrile Rubber Diaphragm
-
Easy Dispensing through 8 ft. (2.5 m) Anti-Static Neoprene Rubber Hose with Aluminum Die-Cast Dispensing Nozzle
-
Includes 2” (50 mm) Die-Cast Bung Adapter
-
Pump Inlet fitted with Easy-Clean Wire Mesh Screen
-
Wetted Components: Aluminum; NBR/Buna-N (Fluoropolymer Elastomer); Steel; Stainless Steel
Not Recommended for Use With: Acids, Acetone, Alkalis, Benzene, Bleach Solutions, Brake Fluid (Hexylene Glycol), Chlorine, Corrosive Fluids, DEF/Urea/AdBlue®, Gasoline, Isobutyl & Isopropyl Alcohol, Lacquers and Lacquer Solvents, Methyl Ethyl Ketone, Trichlorethylene, Wines and Vinegar
