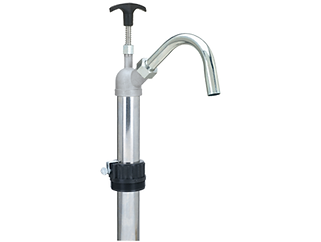

LX-1331 Lift-action, Stainless Steel Barrel Pump

LX-1331 Lift Action Stainless Steel Barrel Pump
Part Number: LX-1331
Standard Pack: 1
Description:
Lift-action, Stainless Steel, Barrel Pump with Fixed Steel Spout
Specifications:
  • Ideal for transferring Fluids that are Volatile and Chemicals such as Esters, Alcohols, Alkali, Acids, Edible Liquids (Juice, Milk, Wine, Water, etc), Minerals, Water Based Chemicals, Soaps, Waxes, etc.

  • Also suitable for transferring Petroleum based fluids of Light to Medium Viscosity, such as, Automotive Additives, Diesel, Lube Oils, Kerosene, Solvents, Benzene, Cleaning Solutions, Fuel Oils, Transmission Fluid, Machine Oils, Lacquer Thinner, Motor Oil, etc.

  • Fits 55 Gal. Drums (210 L) with Standard 2" (50 mm) Bung Opening

  • Comes with Adjustable 2" (50 mm) Bung Bushing

  • Stainless Steel Head and Spout

  • Leak-proof Fittings

  • Self Priming

  • Heavy Duty, Stainless Steel Suction Tube (# 304) and Teflon Piston, for Durability and Maximum Protection against Corrosion

  • Heavy Duty Teflon Seals eliminates by-pass and Floating Steel Check Valve drains Liquid when not in use

  • Maximum Recommended Viscosity : 2000 ssu

  • Maximum Recommended Temperature : 200° F (93° C)

  • Discharge Spout can be rotated 180° and can be removed to expose Garden Hose threaded outlet.

  • 1-1/2" (38 mm) Inlet Port and 3/4" (19 mm) Outlet Port

  • Discharge Capacity : 22 fl. oz. (625 g) per Stroke

  • Pump Height : 42" (1.1 m)

  • Net Weight : 4.5 lb. (2 kg.)

Not Recommended for Use With: Aluminum Sulfate, Copper Chloride, Formic Acid, Hydrochloric Acid, Sodium Chloride, Sodium Chromate, Sodium Hypochlorite (Bleach) and Sulfuric Acid
