Part Number: LX-4841
Standard Pack: 1
Description:
1/4"-28 Taper Thread (SAE-LT), Straight (LX-3007, Qty: 40)
1/4"-28 Taper Thread (SAE-LT), 45 degree (LX-3013, Qty: 10)
1/4"-28 Taper Thread (SAE-LT), 90 degree (LX-3019, Qty: 10)
1/8" P.T.F. Special Extra Short, Straight (LX-3101, Qty. 20)
1/8" P.T.F. Special Extra Short, 45 degree (LX-3113, Qty. 10)
1/8" P.T.F. Special Extra Short, 90 degree (LX-3119, Qty. 10)
Large, 4-way Grease Fitting Tool (LX-1428, Qty: 1)
Small, 4-way Grease Fitting Tool (LX-1426, Qty: 1)
Specifications:
-
Fully hardened for extra durability and to protect them from wear due to constant use
-
Ball check in the head prevents dirt and grit from getting into the fitting
-
Heavier wall thickness for extra strength
-
Zinc Plated with Yellow Passivated finish, for maximum protection against corrosion
-
Stress Relieved and Tempered Carbon Steel Spring
-
Every fitting is individually inspected and batch tested to 5,000 PSI
-
Designed to meet the demanding requirements of most Automotive, Agricultural, Industrial, Marine, Truck, Federal, and, Construction Equipment needs
-
Thread rolled taper threads are stronger and durable due to hardening and toughening of threads. This is not achievable in a cut thread process, as the threads become brittle on the periphery
-
Dome type riviting completely covers the spring enabling the spring to be firmly secured in its place

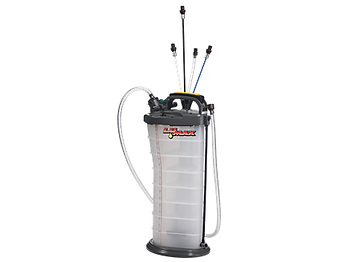

LX-1314 2.6 Gal. (10 L), Manual / Pneumatic, 2-in-1 Fluid Extractor
Part Number: LX-1314
Standard Pack: 1
Description:
Manual / Pneumatic, 2-in-1 Fluid Extractor
Specifications:
-
Easy to Operate. Convenient Manual Pump Operation
-
Suitable for Brake Fluid, Engine Oil, Gear Oil, Transmission Fluid, Water, etc.
-
Ideal for Extracting or Changing Engine Oils or Lubricants in ATV's, Boats, Farm Equipment, Industrial Gear Boxes, Motor Vehicles, Motor Bikes, RV's, Small Aircraft Engines, Snowmobiles, Watercrafts, etc.
-
Excellent for use with Oil, Coolant and Hydraulic Systems
-
Durable, Oil and Chemical-Resistant Polypropylene Construction
-
Non-Spark. Non-Power Fluid Extractor
-
Automatic Overflow Prevention
-
Quick-Drain Pour Spout
-
Decompression/Exhaust Valve for Releasing Negative Pressure
-
Valve and Safety Cup for Automatic Cut-Off Extraction
-
Avoids Mess and Minimizes Clean-Up
Maximum Fluid Temperature: 176ºF (80ºC)
-
Capacity: 2.6 Gal. (10 L)
-
Height: 25.5" (650 mm)
-
Width: 10.5" (265 mm)
-
Weight: 10.6 lb. (4.8 kg)
Kit Contents:
-
Fluid Extractor
-
60" (1.5 M) PVC Steel Braided Suction Hose
-
3/8" (9.5 mm) x 17" (430 mm) Dipstick Tube
-
3/8" (9.5 mm) x 30" (750 mm) Dipstick Tube
-
6 mm (1/4") x 790 mm (31") Dipstick Tube
-
7 mm (5/16") x 920 mm (36.25") Dipstick Tube
-
Tube Adapters
