Part Number: LX-4841
Standard Pack: 1
Description:
1/4"-28 Taper Thread (SAE-LT), Straight (LX-3007, Qty: 40)
1/4"-28 Taper Thread (SAE-LT), 45 degree (LX-3013, Qty: 10)
1/4"-28 Taper Thread (SAE-LT), 90 degree (LX-3019, Qty: 10)
1/8" P.T.F. Special Extra Short, Straight (LX-3101, Qty. 20)
1/8" P.T.F. Special Extra Short, 45 degree (LX-3113, Qty. 10)
1/8" P.T.F. Special Extra Short, 90 degree (LX-3119, Qty. 10)
Large, 4-way Grease Fitting Tool (LX-1428, Qty: 1)
Small, 4-way Grease Fitting Tool (LX-1426, Qty: 1)
Specifications:
-
Fully hardened for extra durability and to protect them from wear due to constant use
-
Ball check in the head prevents dirt and grit from getting into the fitting
-
Heavier wall thickness for extra strength
-
Zinc Plated with Yellow Passivated finish, for maximum protection against corrosion
-
Stress Relieved and Tempered Carbon Steel Spring
-
Every fitting is individually inspected and batch tested to 5,000 PSI
-
Designed to meet the demanding requirements of most Automotive, Agricultural, Industrial, Marine, Truck, Federal, and, Construction Equipment needs
-
Thread rolled taper threads are stronger and durable due to hardening and toughening of threads. This is not achievable in a cut thread process, as the threads become brittle on the periphery
-
Dome type riviting completely covers the spring enabling the spring to be firmly secured in its place

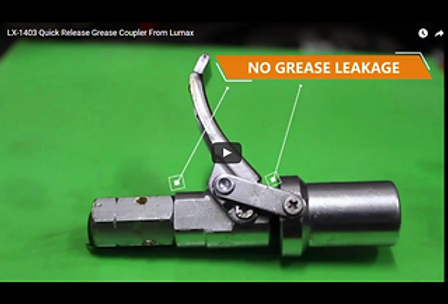

LX-1403 Quick Release Grease Coupler Working Pressure Test
August 11, 2017
Lumax’s exclusive patented design heavy duty quick release coupler has an innovative design that enables it to firmly latch onto the grease fitting, enabling hands free greasing. The LX-1403 has a working pressure of 15,000 PSI and burst pressure of 22,000 PSI.
